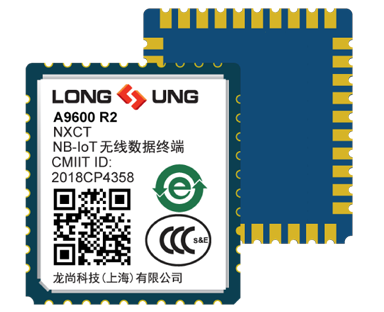

A9600 R2

Longsung A9600 R2 is one of the smallest NB-IoT modules in LCC castellation packaging with the compact size of 16.0 × 18.0 × 2.2mm, ultra low power consumption and extended temperature range.

Designed for use in NB-IoT network. A9600 R2 enables connect to the Internet at DL data speed up to 200Kbps.

2620

分享
  • 产品概述
  • 产品特性
  • 相关下载

Longsung A9600 R2 is one of the smallest NB-IoT modules in LCC castellation packaging with the compact size of 16.0 × 18.0 × 2.2mm, ultra low power consumption and extended temperature range.

Designed for use in NB-IoT network. A9600 R2 enables connect to the Internet at DL data speed up to 200Kbps.

To save space on the application platform, A9600 R2 comes as an extremely slim and compact module. This makes it ideally suited for a broad range of mobile computing devices, and particularly offers easy integration with AMI, Intelligent Buildings ,Smart city and other M2M application.


General features
• NB-IoT:B3/5/8
• Control via AT commands(GSM07.05,GSM07.07,V.25TER,GPRS,and LongSung enhanced AT commands)
• Supply voltage range 3.3V-4.2V
• Low Power consumption:- eDRX mode: <0.7mA      - PSM mode: <5μA
• Dimensions: 16.0mm×18.0mm×2.2mm
• Soldering mounted type
• Temperature range:-40°C to +85°C



Specifications for data:

• Cat NB1 R14 Up to 200Kbps DL&UL



Interfaces:

• LCC package
- Power supply
- USIM/SIM 3V, 1.8V
- UART
- SYS_STATUS
- IIC
- RESET#
- POWER_ON#
- ADCs (1.8V tolerance)
-SPI
-GPIOs





Additional features:

• TCP/IP
• UDP
• CoAP
• LWM2M
• MQTT
• eSIM
• FOTA


Approvals:
• RoHS/CCC/CTA/SRRC


按文件类型搜索

  • A9600 R2 PDF 2019-05-31
