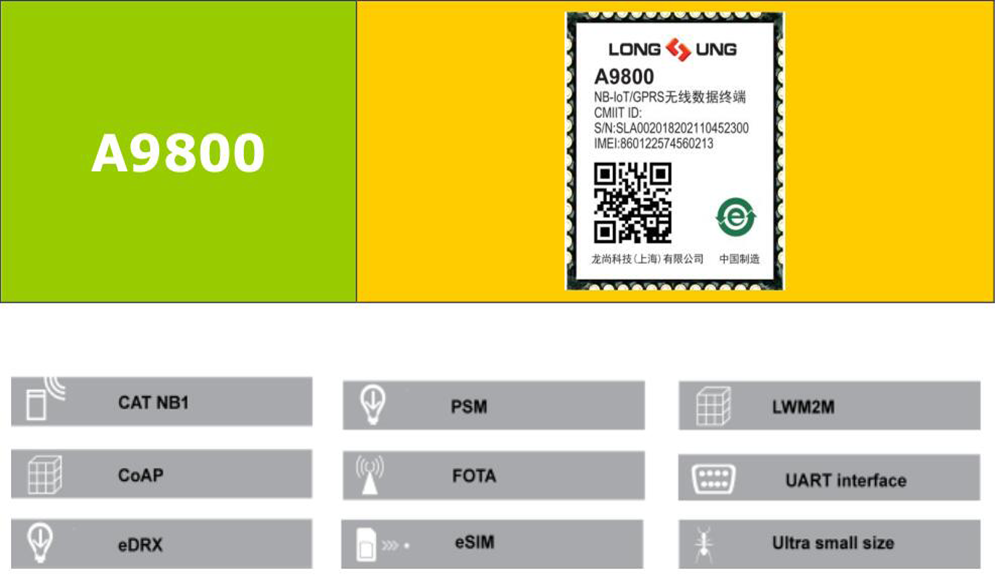

A9800

Longsung A9800 is one of the smallest NB-IoT/GPRS modules in LCC castellation packaging with the compact size of 20.0 × 24.0 × 2.5mm, ultra low power consumption and extended temperature range.

Designed for use in NB-IoT network. A9800 enables connect to the Internet at DL data speed up to 200Kbps. In the area where NB-IoT service are not available, A9800 still enables reliable and secure data connect over GPRS network.

6083

分享
  • 产品概述
  • 产品特性
  • 相关下载

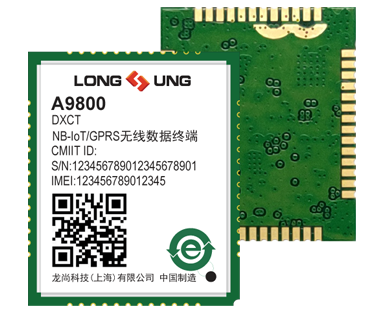

Longsung A9800 is one of the smallest NB-IoT/GPRS modules in LCC castellation packaging with the compact size of 20.0 × 24.0 × 2.5mm, ultra low power consumption and extended temperature range.

Designed for use in NB-IoT network. A9800 enables connect to the Internet at DL data speed up to 200Kbps. In the area where NB-IoT service are not available, A9800 still enables reliable and secure data connect over GPRS network.

To save space on the application platform, A9800 comes as an extremely slim and compact module. This makes it ideally suited for a broad range of mobile computing devices, and particularly offers easy integration with AMI, Intelligent Buildings ,Smart city and other M2M application.


General features
• NB-IoT:B3/5/8
• GPRS:B2/B3/B5/B8
• Control via AT commands(GSM07.05,GSM07.07,V.25TER,GPRS,and LongSung enhanced AT commands)
• Supply voltage range 2.5V-4.2V
• Low Power consumption: - eDRX mode: <0.7mA        - PSM mode: <4μA
• Dimensions: 20.0mm×24.0mm×2.5mm
• Soldering mounted type
• Temperature range:-40°C to +85°C



Specifications for data:

• Cat NB1 R13 Up to 200Kbps DL&UL
• GPRS: Up to 85.6Kbps DL&UL



Interfaces:

• LCC package
- Power supply
- USIM/SIM 3V, 1.8V
- UART
- SYS_STATUS
- IIC
- RESET#
- POWER_ON#
- ADCs (1.8V tolerance)
-SPI
-GPIOs



Additional features:

• TCP/IP
• UDP
• CoAP
• LWM2M
• MQTT
• eSIM
• FOTA


Approvals:
• RoHS/CCC/CTA/SRRC


按文件类型搜索

  • A9800_模块规格书_V1.0 PDF 2020-10-22

  • A9800_AT指令集_V1.3 PDF 2020-10-22

  • A9800_模块硬件接口手册_V0.3 PDF 2020-10-22
